Capacity: 1" through 12" pipe (25-305mm) Schedule 40

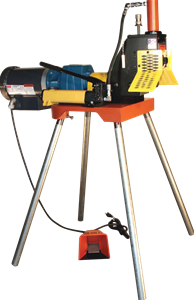

Model 1112 requires just 3 Top Rollers and 3 Bottom Rollers to produce specification quality grooves in a pipe from 1" through 12" diameter Schedule 40. Easily portable for on-the-job work, the Model 1112's electric motor rotates pipe at speeds of 35 RPM. The hand hydraulic pump will deliver up to 15,000 psi pressure at the point of roll grooving. Like all PACE Pipe Grooving Machines, Model 1112 is built to deliver long, trouble-free service.

MODEL 1112 SPECIFICATIONS

• Capacity: 1" through 12" SCHD 40 (10mm) 2" through 8" Copper Tubing K, L, M, and DWV Pipe Rotation Speed: 35 RPM
• Hydraulic Pressure at Roller: 15,000 psi max.
• Spindle Height from Floor: 35" (889mm)
• Electric Drive Motor: 1 1/2 HP 60Hz 110 V 1 PH
• Floor Space Required: 32" x 32" (813x813 mm)
• Shipping Weight: 220 lbs. (100kg)
• Interchangeable Rollers: TOP PIPE DIAMETER/BOTTOM PIPE DIAMETER 1" through 1 1/2" (25-38mm)/ 1" through 1 1/2" (25-38mm) 2" through 6" (51-152mm)/ 2" through 6" (51-152mm) 8" through 12" (203-305mm)/ 8" through 12" (203-305mm)

*Other current characteristics available.

STANDARD EQUIPMENT

Electric Drive Motor Groove Depth Gauge Hydraulic Hand Pump Top and Bottom Rollers 1-12" Shipping/Storage Box Guards Foo switch

OPTIONAL

Top and Bottom 2-8" Copper Tube Grooving Roll Sets, Bottom 2-12" 10 Gauge Stainless Steel Bottom Rolls
